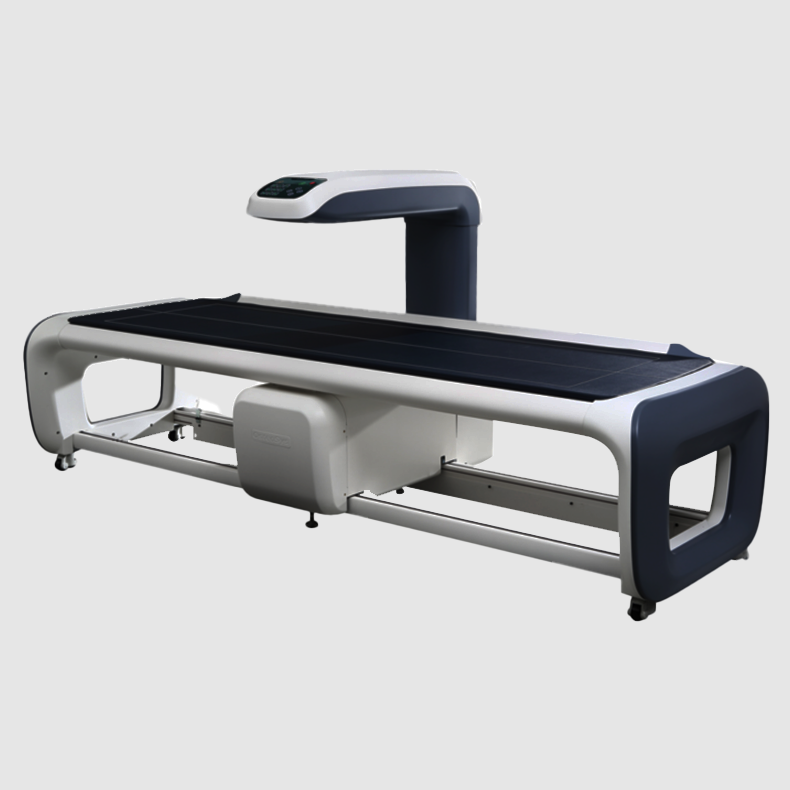

PRIMUS
Whole Body DEXA System
- Full Body dual energy x-ray absorpitiometry (DEXA) system utilizing cutting edge fan beam technology.
- Multichannel detector covering larger areas at higher speed, allowing total body scanning in 7 minutes, AP spine in 30 seconds.
- Total body composition and various whole body assessment
- Orthopedics
- Pediatrics
- Open body design to improve sanitation of the room "Less dirt, Less Dust!"
- Automatic Implant Detection
- DICOM (Standard)
Measurement points and Speed:
AP spine (about 30 sec ± 2sec)
Femur (about 25 sec ± 2sec )
Forearm (about 23 sec ± 2sec )
Total Body (about 7min / depend on height)
Lateral Spine
LVA
Dual femur
- Measurements:
BMD, BMC, BMI, T-score, Z-score, Area,
Total body BMD
Total body composition (FAT, Lean, BMC)
HA(Hip Analysis).
Dual femur, LVA.
Total body composition and various whole body assessment.
Orthopedics, Pediatrics, Infant, Visceral FAT
FRAX
B-Scope (Body-Scope), GDP, AFF, Dual Scan
Color mapping
Trend report .
EXCELLUS
Half Body DEXA System
- Half Body dual energy x-ray absorpitiometry (DEXA) system utilizing fan beam technology.
- Half body fat decomposition (lean mass, fat mass) "
- Compact sophisticated design with multichannel detector.
- Can be used as normal table for ultrasound utilizing its swing arm function
- DICOM
Measurement points and Speed:
AP spine
Femur
Forearm
Total Body (about 7min / depend on height)
Lateral Spine
LVA
Dual femur
Orthopedics
Pediatrics
- Measurements:
BMD, BMC, BMI, T-score, Z-score, Area,
Total body BMD
Half body composition (FAT, Lean, BMC)
HA(Hip Analysis).
Dual femur, LVA.
Half body Analysis
Orthopedics, Pediatrics, Infant, Visceral FAT
FRAX
Color Mapping
B-Scope (Body-Scope), GDP, AFF, Dual Scan
Trend report .
Half Body DEXA System
- Half Body dual energy x-ray absorpitiometry (DEXA) system utilizing fan beam technology.
- Half body fat decomposition (lean mass, fat mass) "
- Compact sophisticated design with multichannel detector.
- Can be used as normal table for ultrasound utilizing its swing arm function
- DICOM
Measurement points and Speed:
AP spine
Femur
Forearm
Total Body (about 7min / depend on height)
Lateral Spine
LVA
Dual femur
Orthopedics
Pediatrics
- Measurements:
BMD, BMC, BMI, T-score, Z-score, Area,
Total body BMD
Half body composition (FAT, Lean, BMC)
HA(Hip Analysis).
Dual femur, LVA.
Half body Analysis
Orthopedics, Pediatrics, Infant, Visceral FAT
FRAX
Color Mapping
B-Scope (Body-Scope), GDP, AFF, Dual Scan
Trend report .
DEXXUM T
Central DEXA
- Central Dexa (Central Dual Energy X-Ray Absorpitiometry .
- Pencil Beam Technology
- Scan Sites: AP Spine (85 sec), Femur (65 Sec), Dual Femur, Forearm (5 min, 53 sec.)
- Measured Parameters: BMD, BMC, BMI, T-Score, Z-Score, Area,
- FRAX, Color Mapping
- Trend reports
- DICOM
Watch Demonstration Videos!
PRIMUS
EXCELLUS
DEXXUM

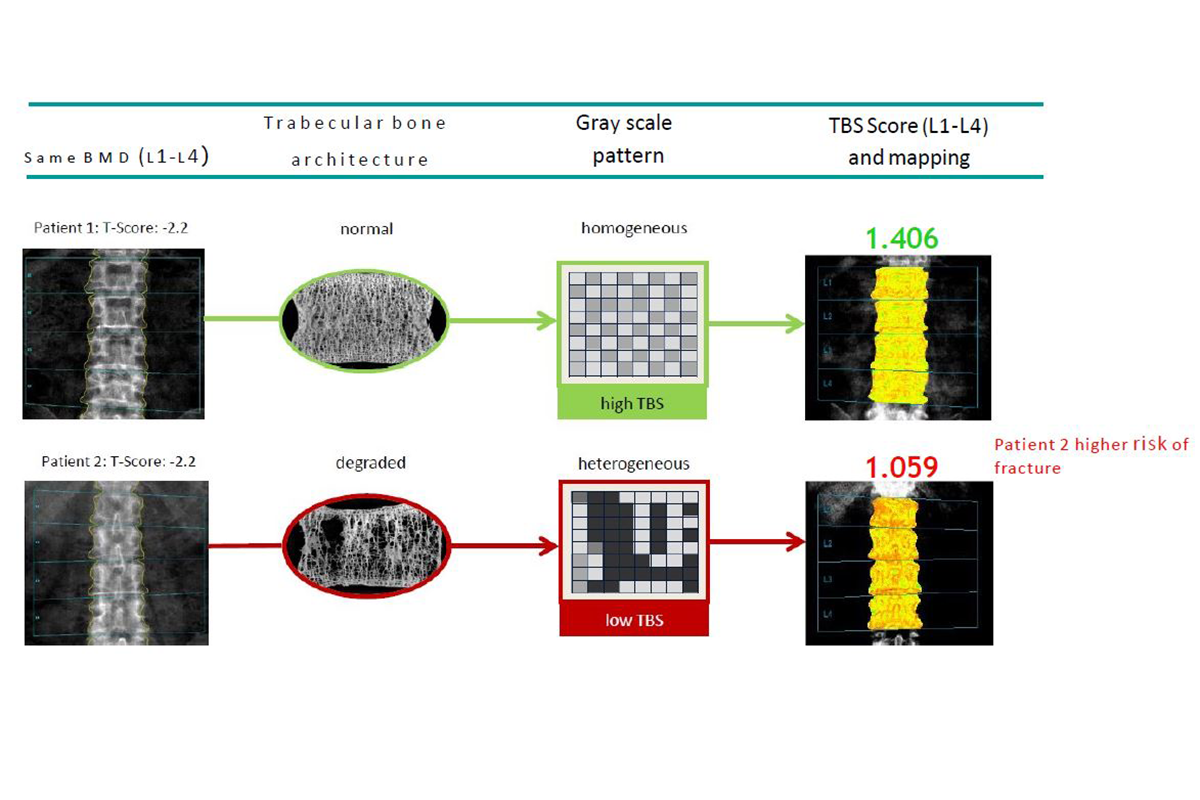

Trabecular Bone Score (Optional)
Although bone mineral density gives an indication about the fragility of bones and determines if the patients are normal, osteopenic or osteoperotic, it has limitations of identifying all patients with high risk of bone fracture.The Trabecular bone score (TBS) add a significant information about the bone structure (microarchitecture) by measuring the bone texture.
The DXA BMD value together with TBS will provide a complete diagnostic information on bone fragility and risk of fracture.
