Understanding the Difference Between Oscillating and Non-Oscillating Grids in X-Ray Machines
X-ray machines are essential tools in medical imaging, providing high-quality diagnostic images that aid in patient care. One of the critical components in an X-ray system is the grid, which helps reduce scatter radiation and improve image contrast. Grids come in two main types: oscillating (or moving) grids and non-oscillating (or stationary) grids. Understanding the differences between these two grid types is crucial for optimizing image quality and ensuring efficient operation.
The Role of Grids in X-Ray Imaging

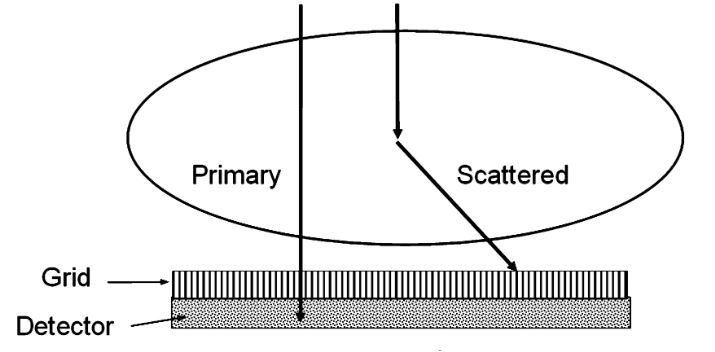

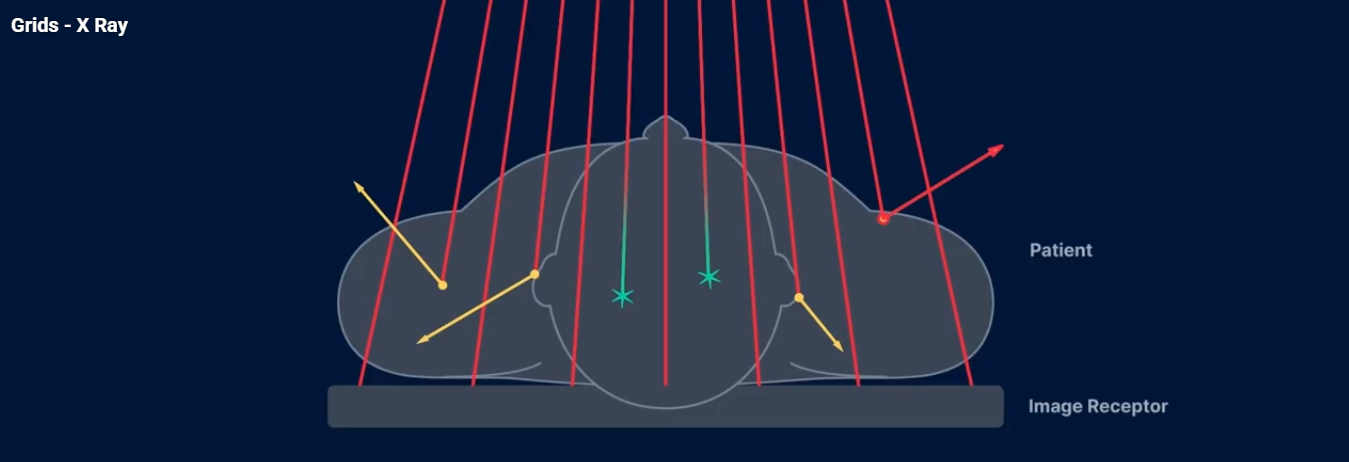

When X-rays pass through a patient's body, some of the radiation is absorbed while the rest penetrates through and reaches the detector. However, some X-rays are scattered due to interactions with tissues, leading to unwanted noise in the image. A grid is positioned between the patient and the detector to absorb scattered radiation while allowing primary X-rays to pass through, enhancing image clarity.
Non-Oscillating (Stationary) Grids

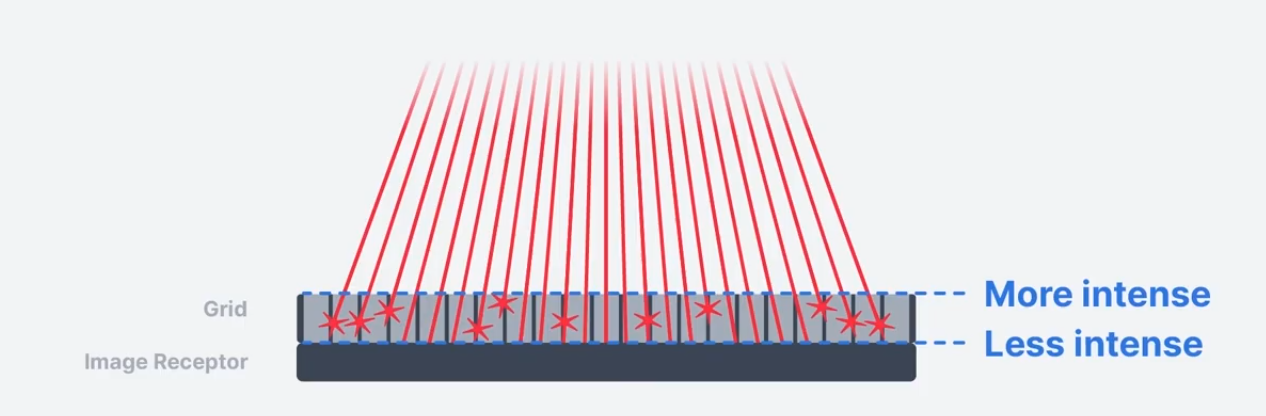

A non-oscillating grid is a fixed, stationary device composed of alternating lead strips and radiolucent material. It is designed to absorb scattered radiation while permitting the primary X-ray beam to pass through. Stationary grids are commonly used in portable X-ray systems and lower-end radiographic equipment due to their simplicity and cost-effectiveness.
Advantages of Non-Oscillating Grids:
- Simple and cost-effective design
- No moving parts, reducing mechanical failure
- Suitable for portable and emergency imaging applications
- Easy to remove when non-bucky scans are necessary
Disadvantages of Non-Oscillating Grids:
- Grid lines may appear on the final image if not properly aligned
- Less effective at reducing scatter compared to oscillating grids
- Easy to loose, scratch or damage.
Oscillating (Moving) Grids
An oscillating grid, also known as a moving grid, is designed to move during X-ray exposure to blur out the grid lines, making them less visible on the final image. This movement is achieved using a motorized mechanism that shifts the grid slightly in a lateral or circular motion during exposure. Oscillating grids are commonly used in high-end radiographic and fluoroscopic systems.
Advantages of Oscillating Grids:
- Eliminates grid line artifacts, leading to clearer images
- More effective at reducing scatter radiation compared to stationary grids
- Enhances image contrast for better diagnostic accuracy
Disadvantages of Oscillating Grids:
- More complex and expensive due to moving parts
- Requires precise mechanical maintenance to prevent malfunctions
- Not suitable for portable X-ray systems due to the need for a power source
- Cannot be removed for non-bucky scanning - an external detector holder must be used
Choosing the Right Grid for X-Ray Imaging
The choice between an oscillating and a non-oscillating grid depends on the specific application and imaging requirements. If cost and portability are primary concerns, a stationary grid is a suitable option. However, for applications requiring higher image quality and contrast, such as in hospital radiology departments, an oscillating grid is the preferred choice.
In summary, while both grid types serve the essential function of reducing scatter radiation, oscillating grids provide superior image quality by minimizing grid line artifacts. Non-oscillating grids, on the other hand, offer simplicity and affordability, making them ideal for specific use cases. By understanding these differences, radiology professionals can make informed decisions to optimize their imaging systems.
